THE10 PASSIVE LED PHANTOM
Overview
Description

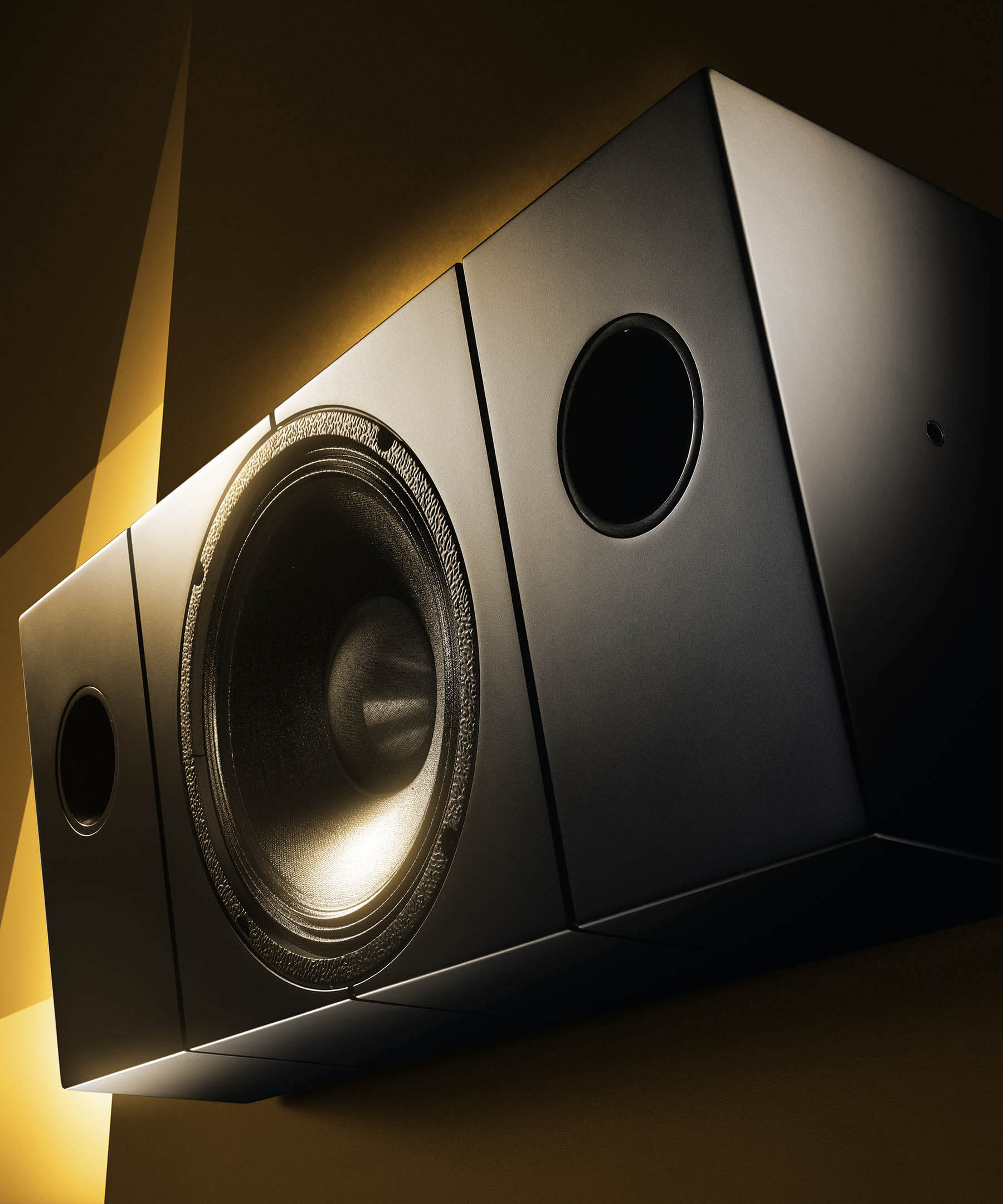

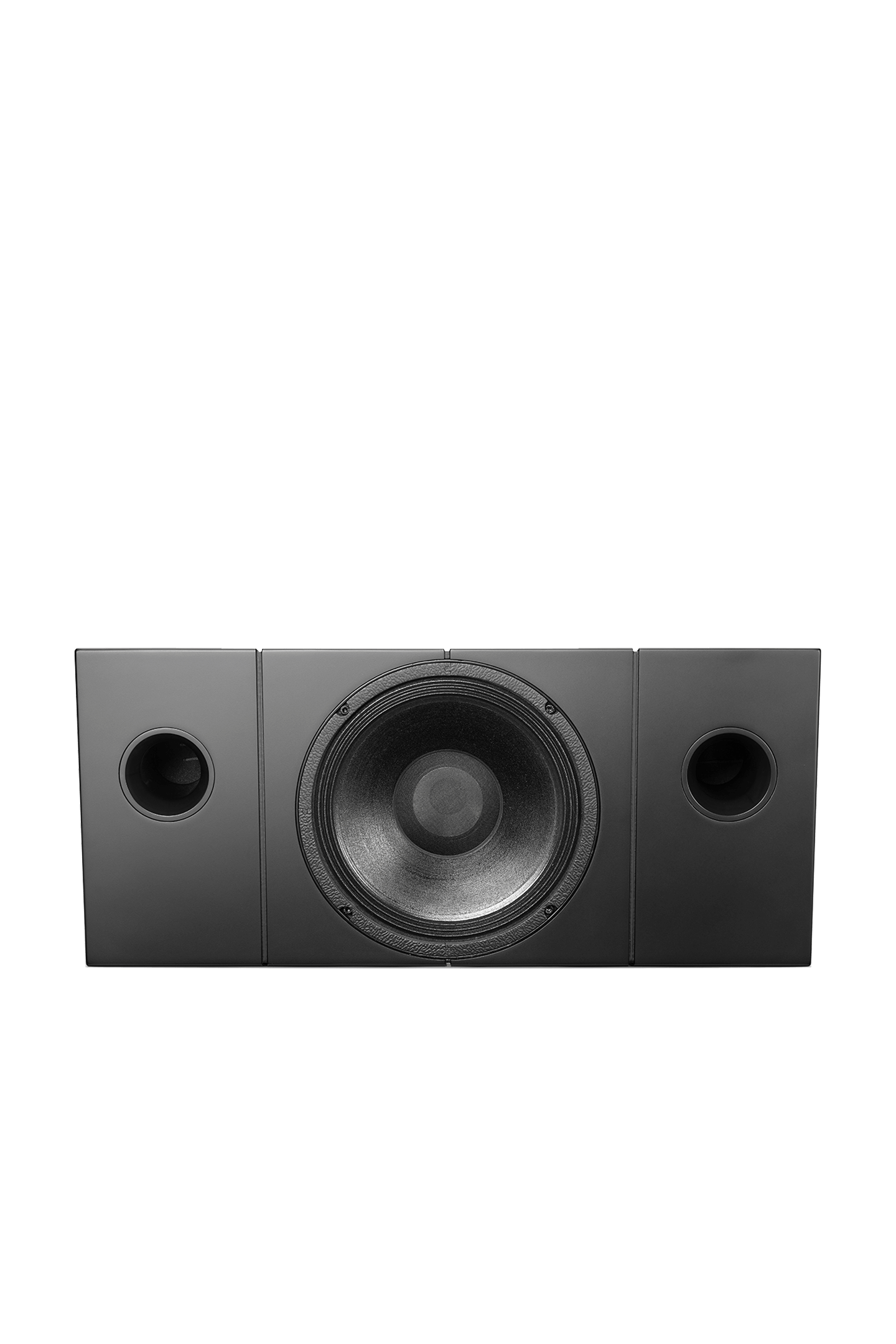

THE10 PASSIVE LED PHANTOM VOICE Speaker: Unleash the Ultimate Audio Experience for LED Applications and Beyond
THE10 PASSIVE LED PHANTOM VOICE speaker is a revolutionary solution designed to elevate your home theater experience like never before. This versatile speaker is built to meet the growing demand for high-quality sound in shallow and narrow spaces, making it the perfect companion for LED screens from leading brands like Samsung, Quantum, Christie, Barco, as well as non-perforated or near-field projection screens.
Key Features at a Glance:

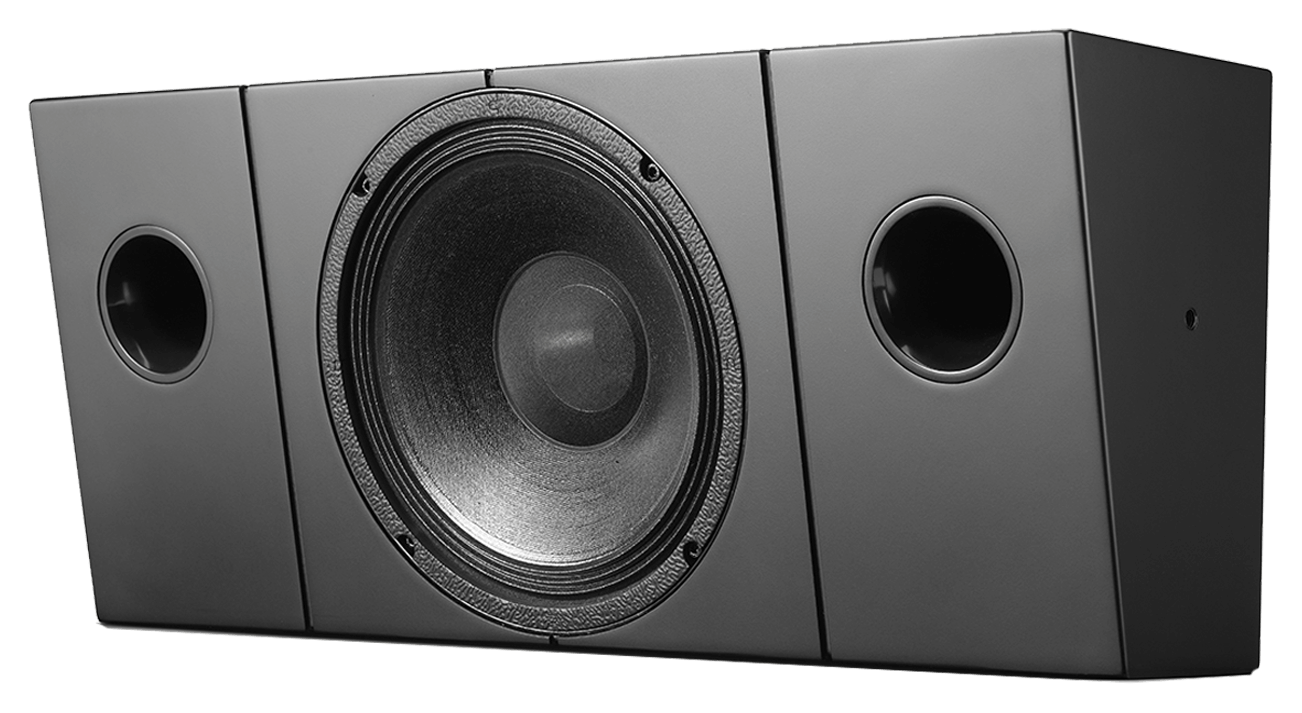

- Advanced Design for Seamless Integration: The 12-degree wedge shape is expertly engineered to deliver impeccable sound coverage in theaters with one to three rows of seating. Whether you're setting up your home cinema or a professional screening room, this speaker ensures every seat is the best seat in the house.
- Precision Sound Placement: The "Phantom" in its name isn't just for show – it refers to the stereo phantom image, which can be adjusted vertically using DSP (Digital Signal Processing) technology. This allows you to position the voice exactly where it belongs: at the center of the screen, creating an immersive audio experience.
- Sleek and Versatile Form Factor: Its slender, narrow design opens up a world of possibilities. Whether you need a high-performance top speaker, wide speaker, or high speaker layer, the 10 Passive LED Phantom Voice adapts to your needs. It’s even ideal for regular surround sound setups, enhancing your audio experience from every angle.

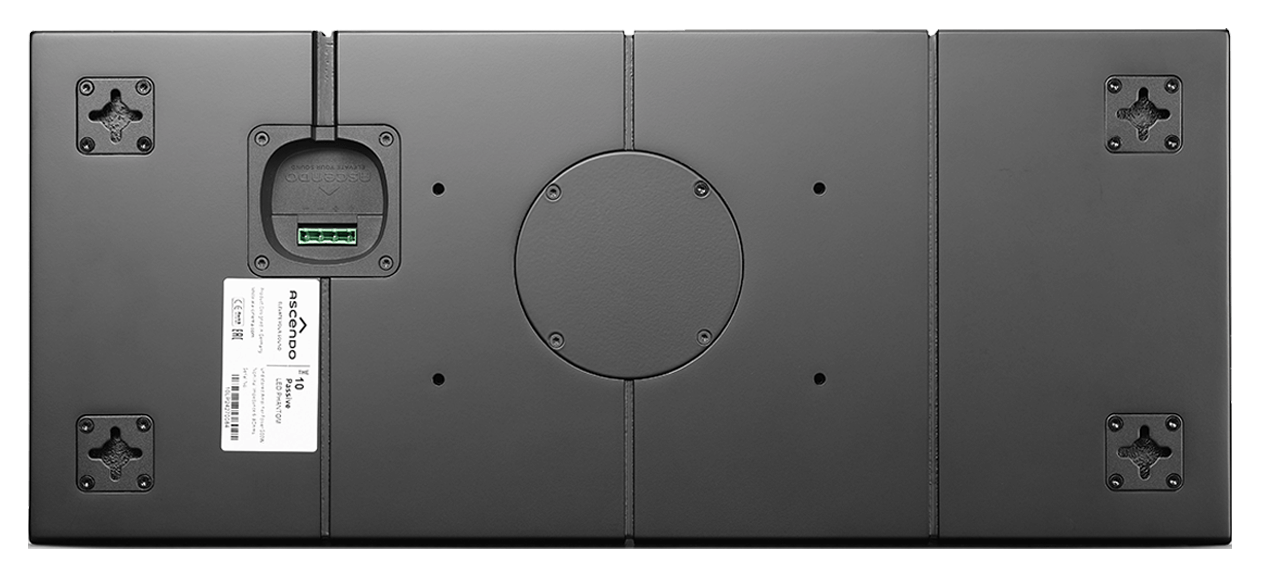

- Flexible Mounting Options: Installation is a breeze with the included mounting brackets, allowing for ceiling or wall mounting at any desired angle. Additionally, keyhole wall mounts on the top and back of the speaker provide even more flexibility in positioning.
This is more than just a speaker. It's the future of home theater. THE10 PASSIVE LED PHANTOM VOICE speaker promises to deliver unparalleled sound quality, perfect for any home theater setup. Don't miss out on this cutting-edge audio solution; upgrade your sound system today and experience the difference for yourself.
Specification
General
Speaker Type

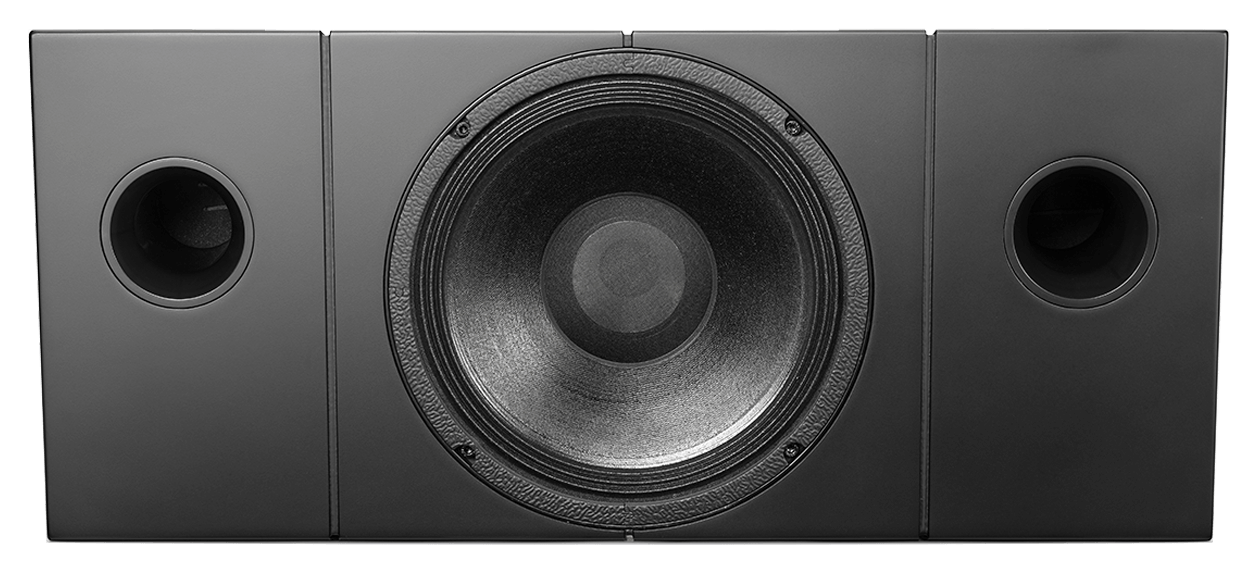

10” time-coherent point-source coaxial
Principle
Vented
Passive | Active
Passive
Woofer
10” woofer
Tweeter
1 ⅜” voice coil diameter, compression driver
Recommended ASCENDO Amplifiers
AIA2-1404,AIA2-2704, AIA4-2404, AIA8-2704, AIA8-6004
Measured Data
SPL (Half Space 2pi)
Measured Data 120 dB (Cont.) / 130 dB (Peak) 120 dB @ 100 Hz 130 dB @ 150 Hz
Frequency Range
Measured Data (Without DSP) 100 Hz - 20 kHz / -3 dB
Power Handling
500 W
Efficiency
91 dB / 1 W/m 4 pi, 97 dB / 1 W/m 2 pi
Impedance
8 Ω
Directivity Horizontal x Vertical in deg°
85° x 85°
Input
Input Terminal
4-conductor Phoenix 12 AWG (3.3 mm²)
Dimensions & Weight
Dimensions (W/H/D) mm (Without Grille)
630 | 270 | 171.3 (With grille: 178.2)
Dimensions (W/H/D) inch (Without Grille)
24 13/16 | 10 5/8 | 6 3/4 (With grille: 7)
Packing Dimensions (W/H/D) mm
760 | 400 | 330
Packing Dimensions (W/H/D) inch
29 15/16 | 15 3/4 | 13
Weight
29.76 lbs | 13.5 kg
Gross Weight
37.47 lbs | 17.0 kg
Design & Mounting
Enclosure
Internally braced MDF
Finish
Matte black / White glossy
Mounting
Metal wall or ceiling mounting brackets allowing further angling in two axes, 8 x wall mount brackets for multiple hanging options, VESA 200 x 100 mounting points
Name

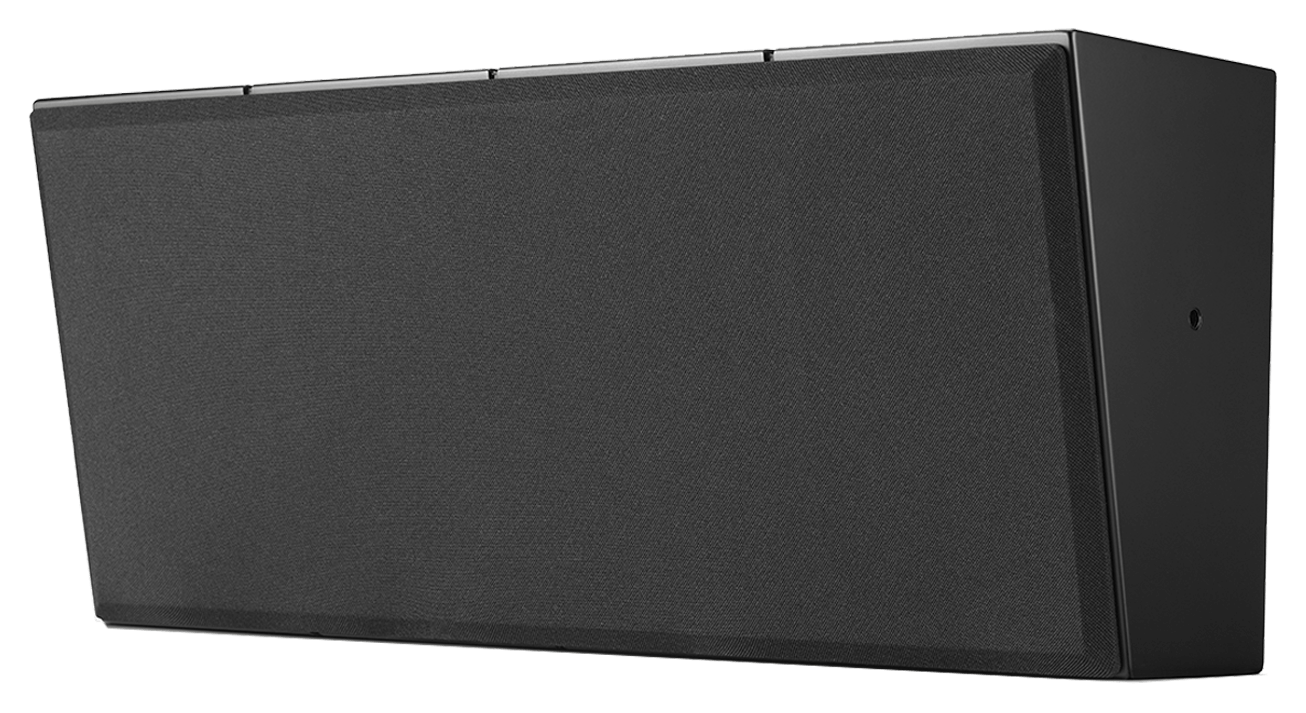

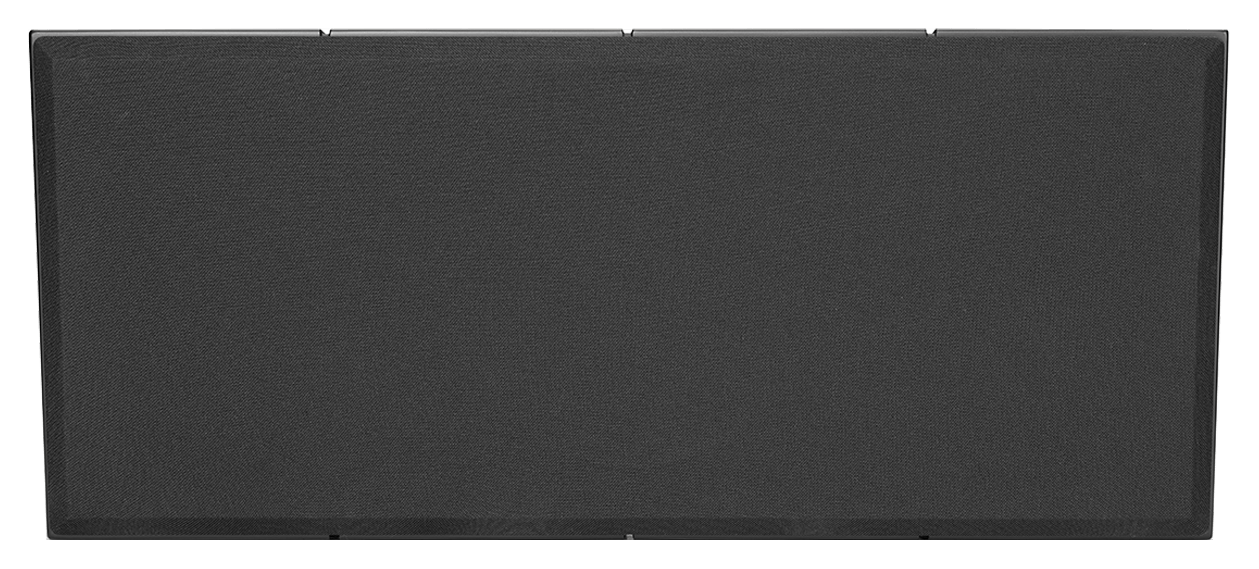

The THE10 PASSIVE LED PHANTOM is supplied with a front cover as standard
